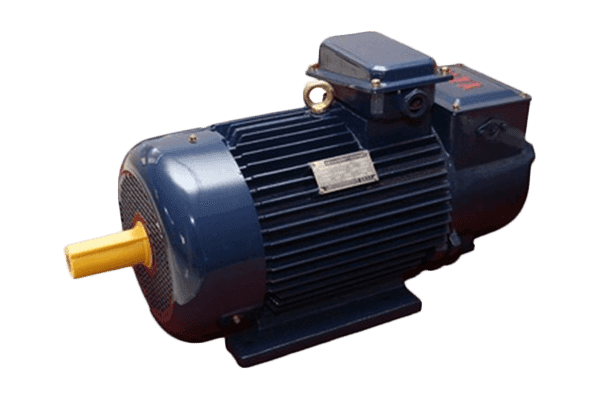

Crane Motor-YZR Series Motor

YZR Series Motor

Crane Motor-YZR Series Motor

Contact Us
  • Product Description
  • Technical Parameters
  • Anatomical Drawings
  • Installation And Size

Product Description

YZR lifting and metallurgical electromagnetic braking three-phase asynchronous motor is a derivative product of YZR series motor, which is based on the YZR series motor, which is composed of DC electromagnetic brake. The features of high overload capacity, reliable braking, adjustable braking torque, compact structure, convenient control, easy maintenance and so on. Applicable to the requirements of frequent starting, fast braking, accurate positioning, intermittent operation of the lifting and metallurgical machinery and equipment.

The rated voltage of the motor is 380V, the rated frequency is 50Hz, the excitation voltage of the electromagnetic brake is DC 170V.

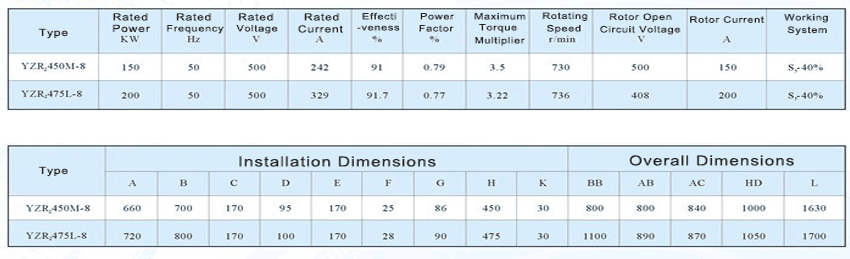

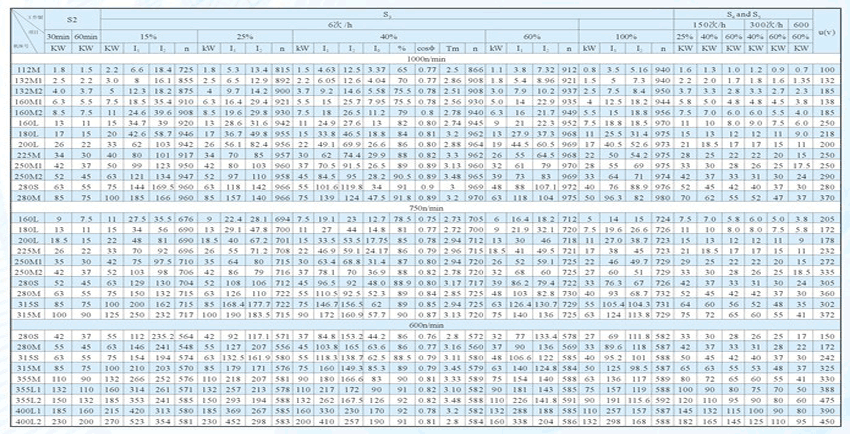

Technical Parameters

1-1

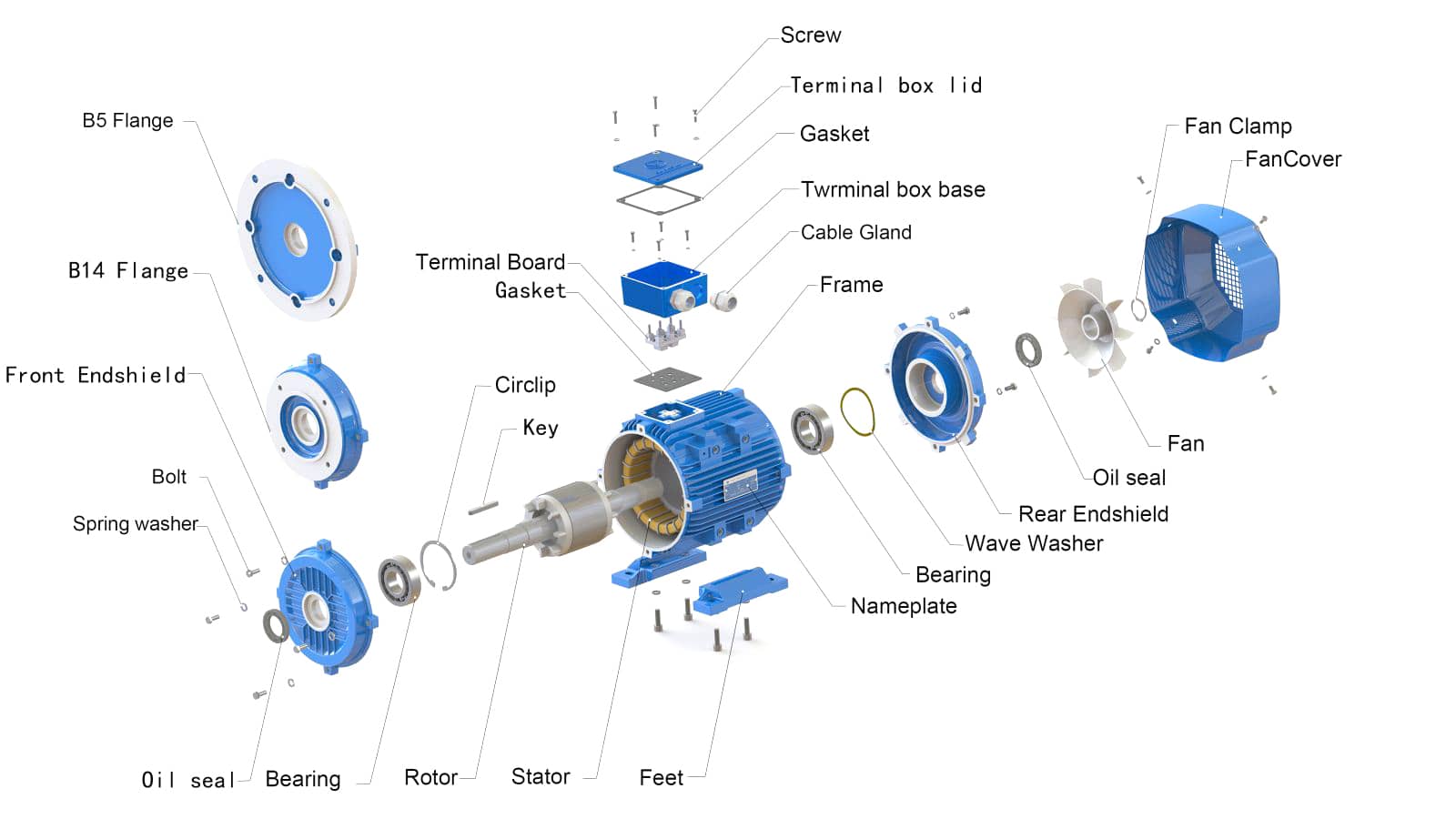

Anatomical Drawings

yzr2

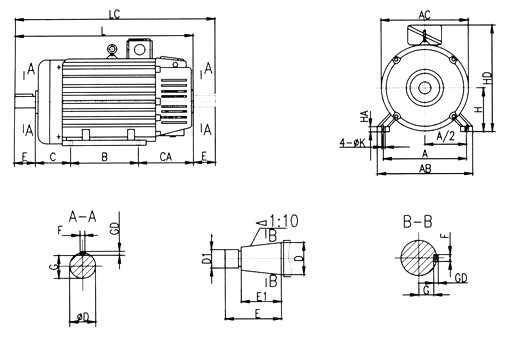

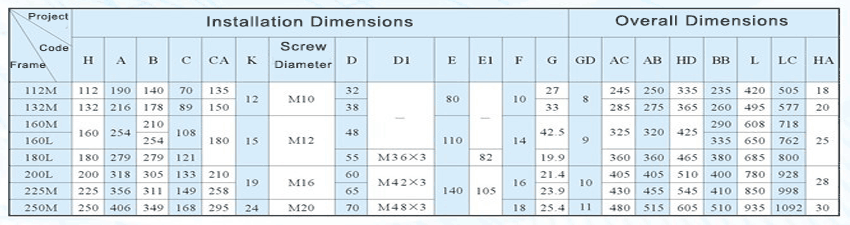

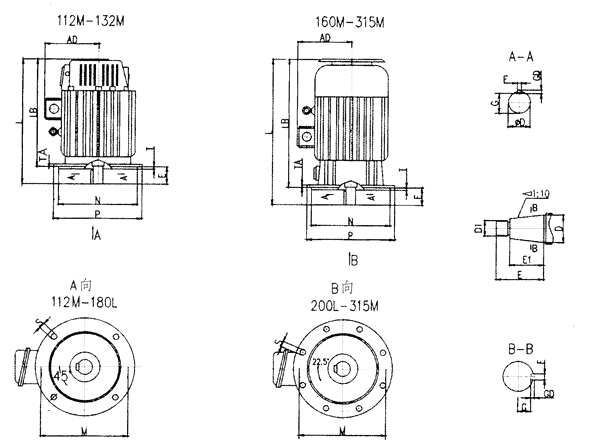

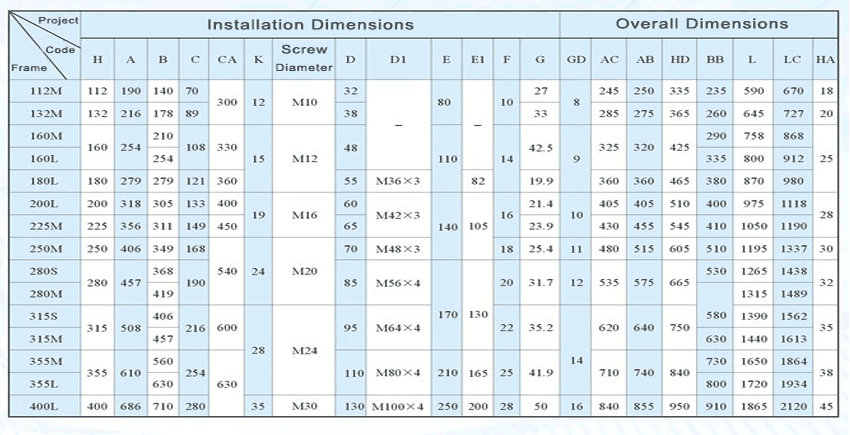

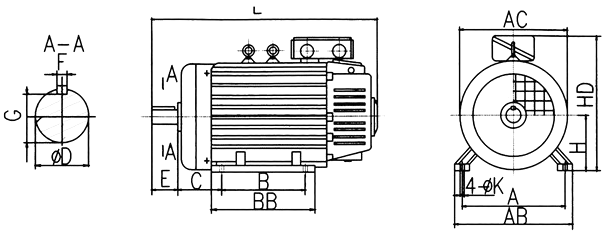

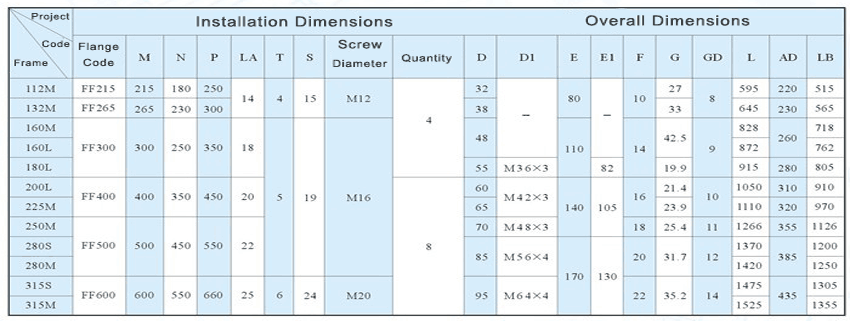

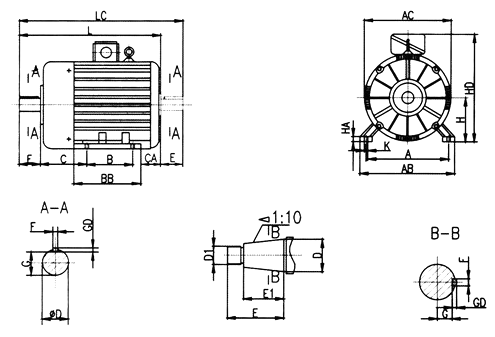

Installation And Size

5 6 7 81234
