Product Description

YZRE lifting and metallurgical electromagnetic braking three-phase asynchronous motor is a derivative product of YZR series motor, which is based on the YZR series motor, which is composed of DC electromagnetic brake. The features of high overload capacity, reliable braking, adjustable braking torque, compact structure, convenient control, easy maintenance and so on. Applicable to the requirements of frequent starting, fast braking, accurate positioning, intermittent operation of the lifting and metallurgical machinery and equipment.

The rated voltage of the motor is 380V, the rated frequency is 50Hz, the excitation voltage of the electromagnetic brake is DC 170V.

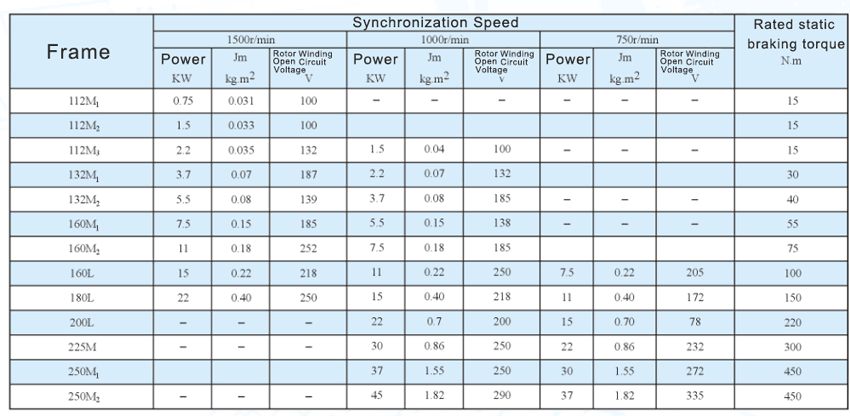

Technical Parameters

1-1

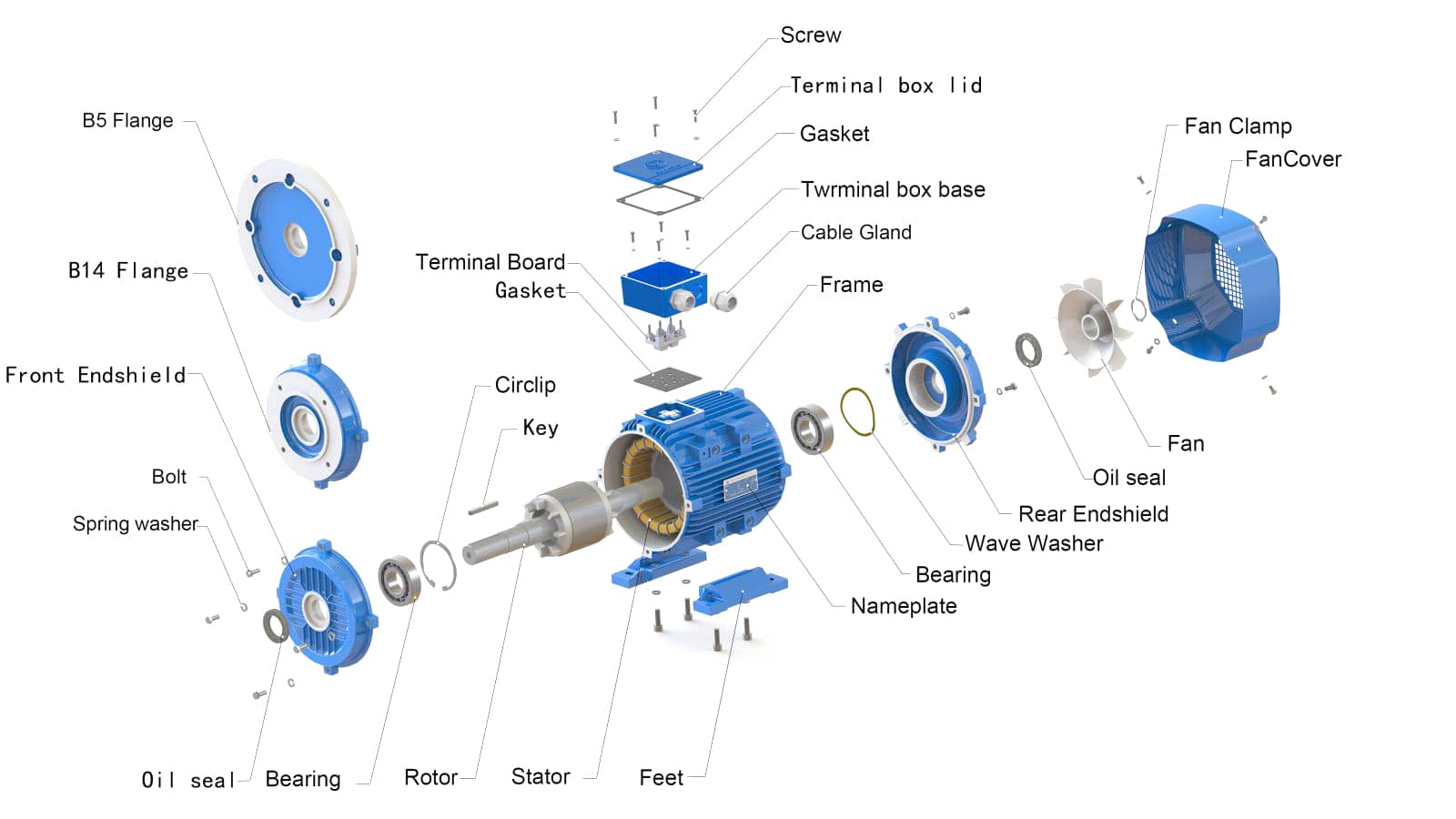

Anatomical Drawings

yzre2

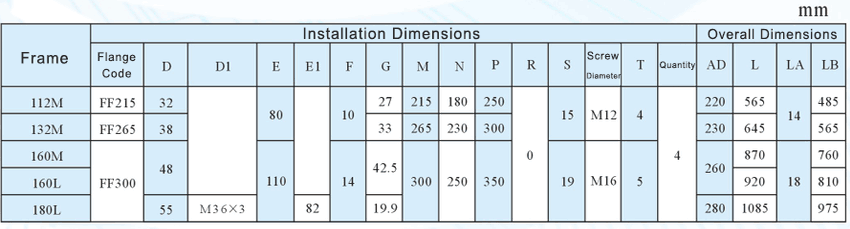

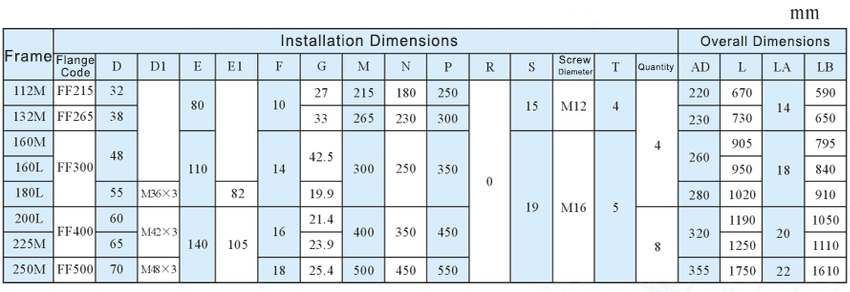

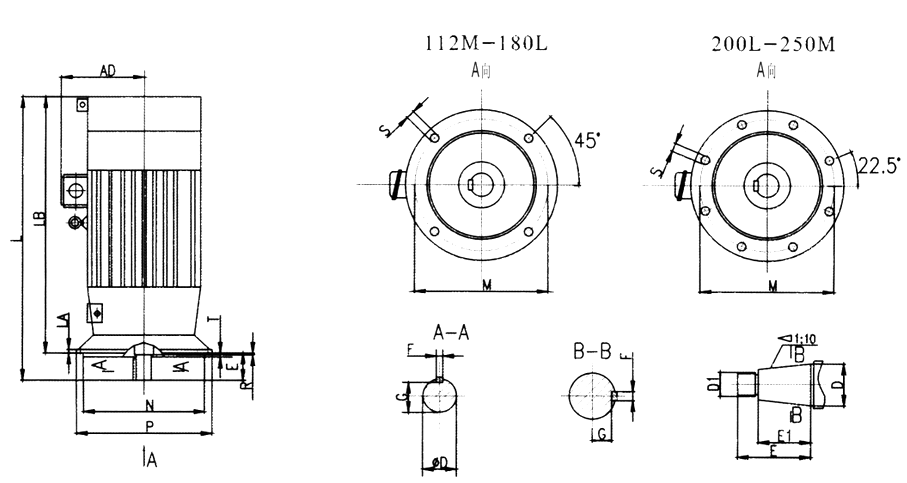

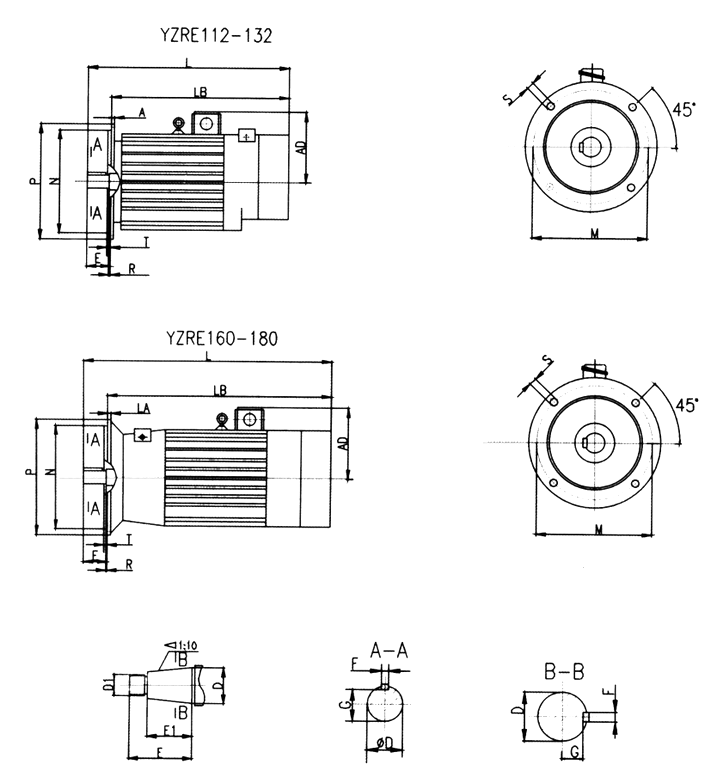

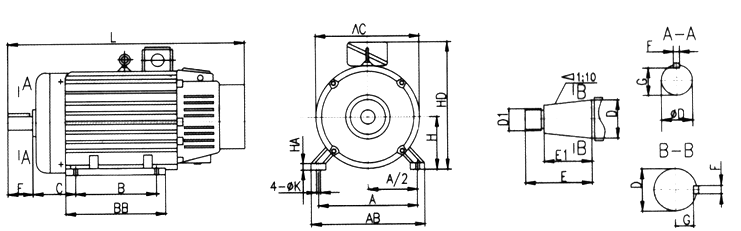

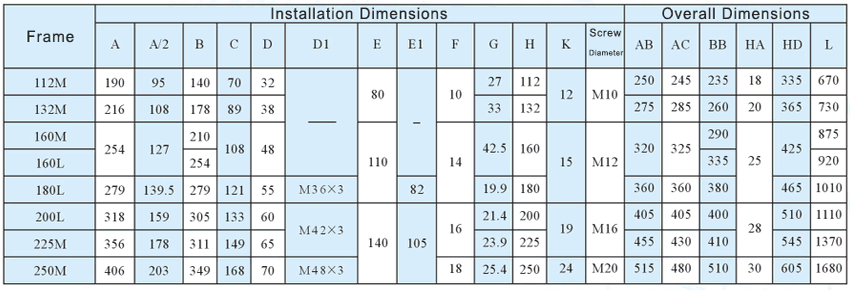

Installation And Size

     6 7 81-13-15-1
