Product Description

YZPSL series water cooled high temperature resistant motor is the basis of the frequency conversion speed series motor, according to the metallurgical continuous casting machine on-site conditions need to develop the design of inner loop water cooling frequency control three-phase asynchronous motor. Which is suitable for drawing and straightening machine and high temperature environment, and supporting the use of variable frequency speed regulation system. The series motor has a unique cooling system can ensure the stable operation of the long run when the motor is in high ambient temperature under the condition of high temperature, high humidity and corrosion characteristics.

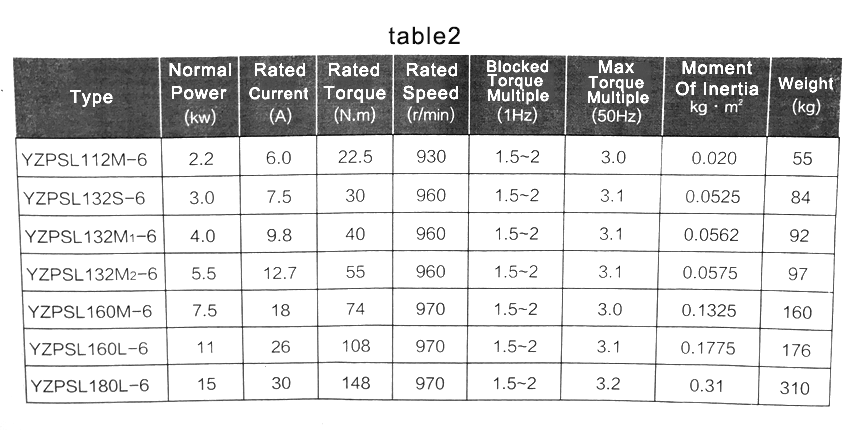

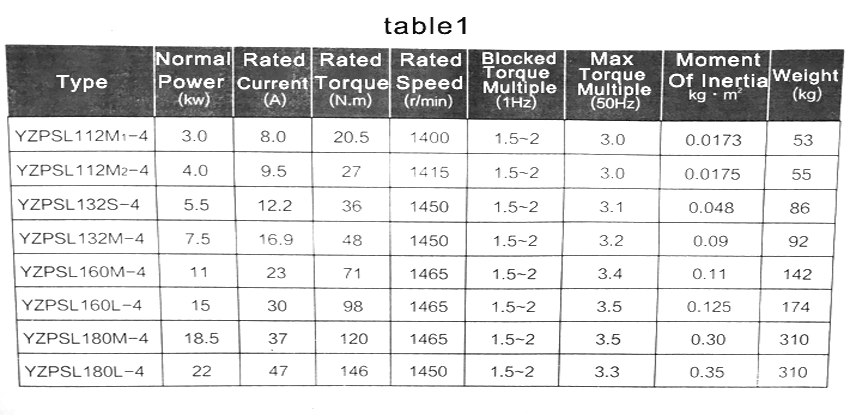

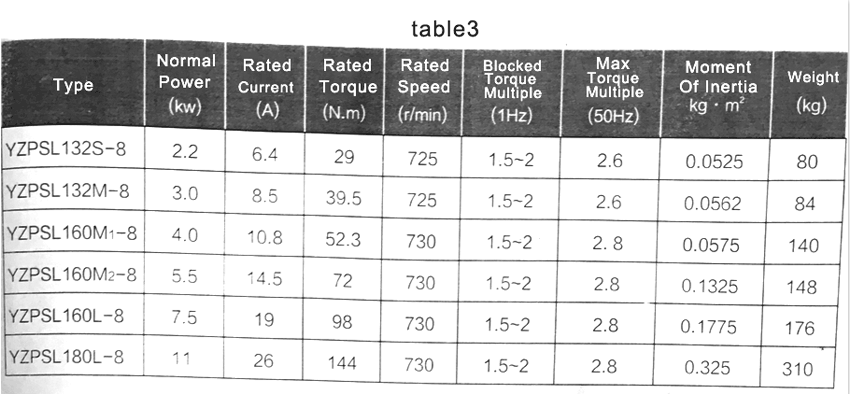

Technical Parameters

1-1 2-1 3-1

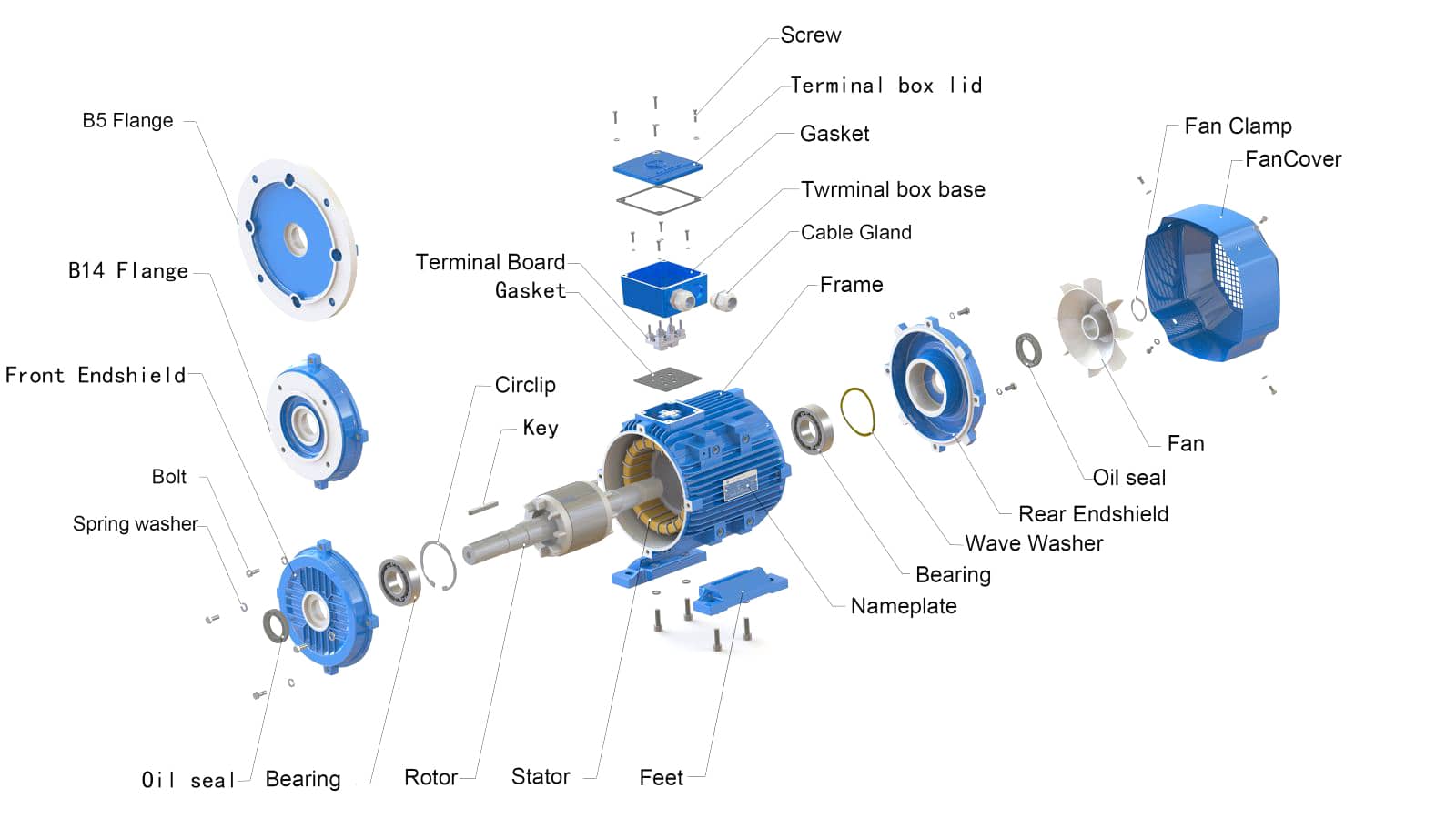

Anatomical Drawings

yzpsl2

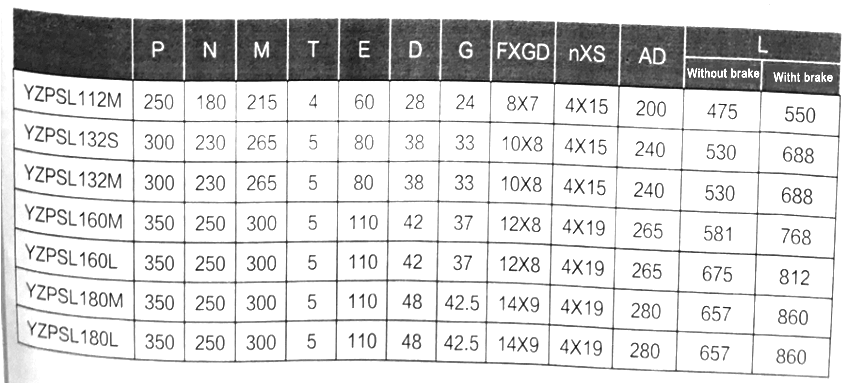

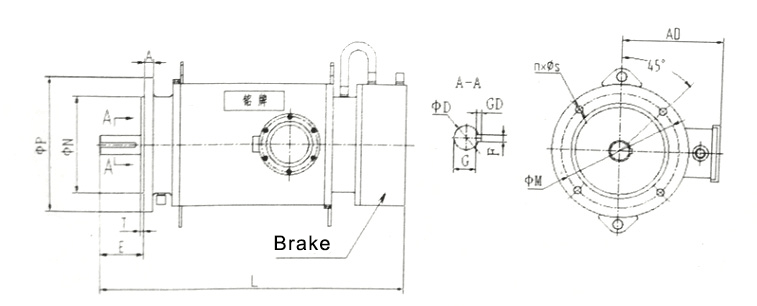

Installation And Size

1-11-2
